Description

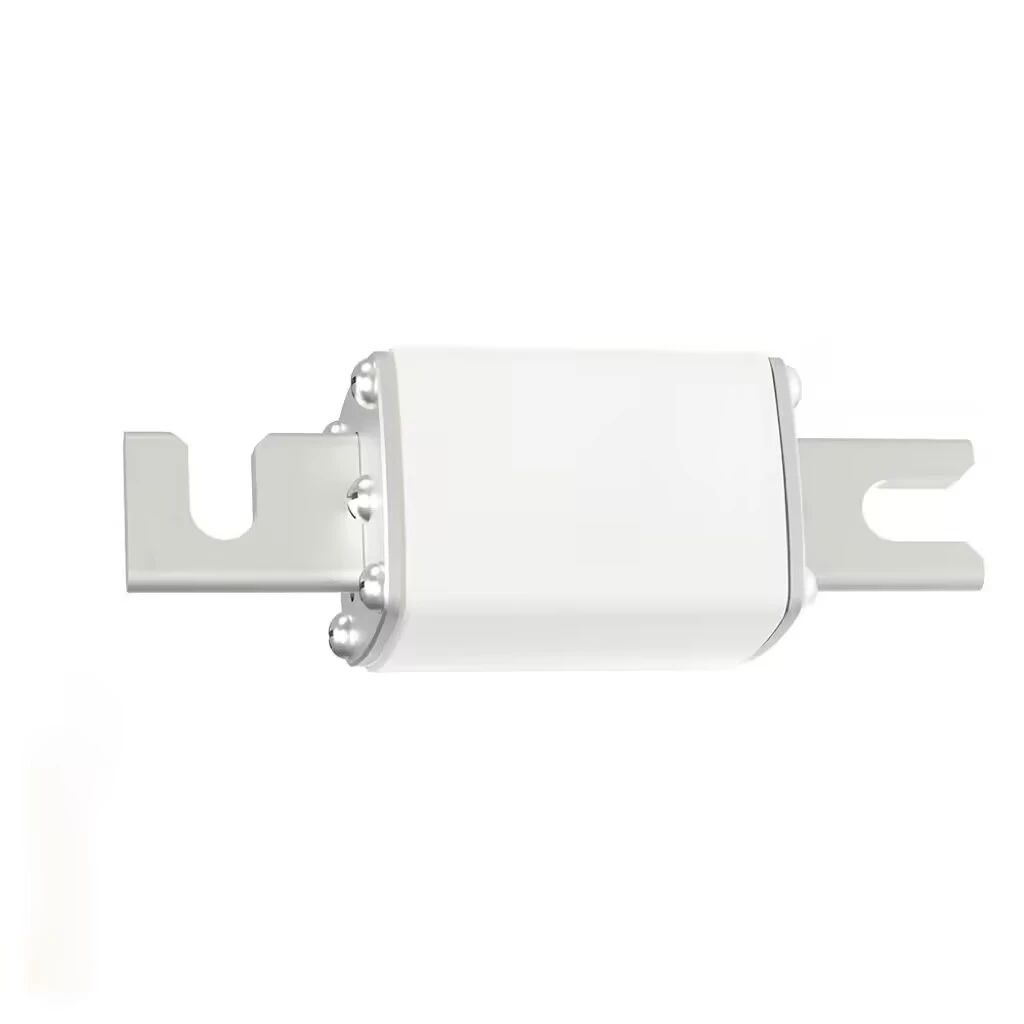

GFEVT1000-B-43E High Speed Fuse 50A-400A 1000V Chinese Semiconductor Fuse Manufacturer
Features & Benefits
- Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
- Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
- Greater ampacity within sizing guidelines.
- Excellent power of resisting voltaic impingement and environmental temperature tolerance.
- Excellent resistance to mechanical vibration and impact resistance.
Dimensions (mm)
GFEVT1000-B-43E
GFEVT1000-BN-43E
Description
- Design For DC Applications
- Excellent Dc Performance
- Superior cycling capability
- Low Watt Losses
Standards/Approvals
- Refer To UL 248.1 / UL 248.13
- IEC 60269.1 / IEC 60269.4
- REACH declaration available upon request
- RoHS Compliant
Fuse Ratings
| Part No. | Fuse | Size | Average @ 50KA/1000Vdc | Power Loss (W) 1.0In | |
|---|---|---|---|---|---|
| Amps | A²s Melting | A²s Clearing | |||
| GFEVT1000-50B-43E | 50 | 01* | 137 | 1,000 | 16 |
| GFEVT1000-63B-43E | 63 | 01* | 215 | 1,620 | 19 |
| GFEVT1000-80B-43E | 80 | 01* | 410 | 3,145 | 23 |
| GFEVT1000-100B-43E | 100 | 01* | 740 | 5,645 | 29 |
| GFEVT1000-125B-43E | 125 | 01* | 1,460 | 10,860 | 34 |
| GFEVT1000-160B-43E | 160 | 01* | 2,535 | 19,850 | 41 |
| GFEVT1000-200B-43E | 200 | 01* | 5,070 | 38,200 | 46 |
| GFEVT1000-250B-43E | 250 | 01* | 8,970 | 68,550 | 51 |
| GFEVT1000-315B-43E | 315 | 01* | 18,200 | 142,950 | 61 |
| GFEVT1000-350B-43E | 350 | 01* | 26,400 | 199,500 | 66 |
| GFEVT1000-400B-43E | 400 | 01* | 38,750 | 293,500 | 74 |
| Optional base indicator, the standard product is the “Default” configuration. Default: B–with fuse indication, e.g.: GFEVT1000-400B-43E; Optional: BN–without fuse indication, e.g.: GFEVT1000-400BN-43E; |
|||||
