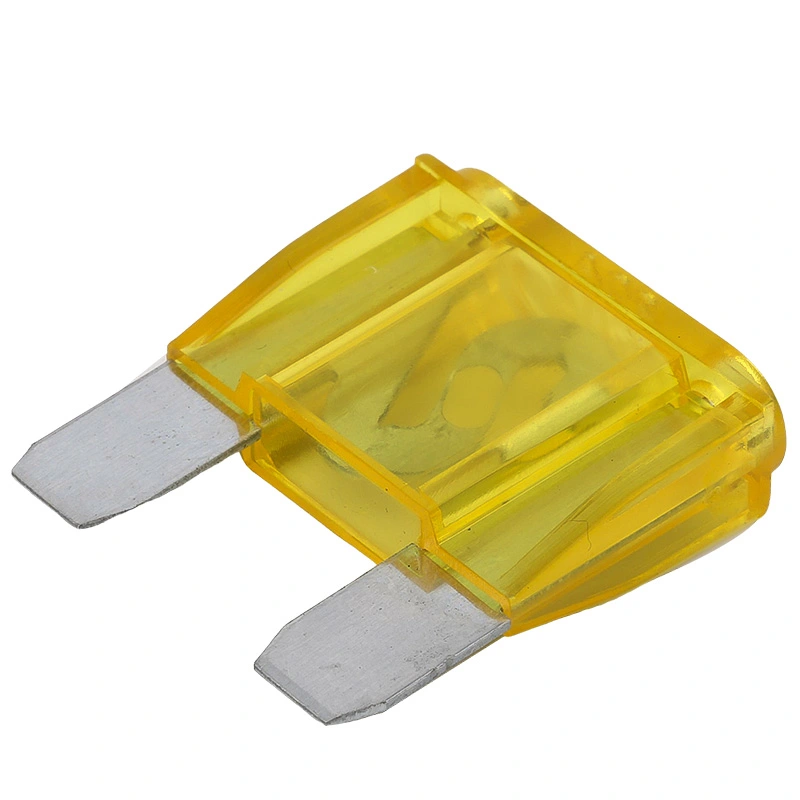

MAXI automotive fuses. Blade fuse

MAXI automotive fuses. Blade fuse

MAXI automotive fuses. Blade fuse：GFEFUSES is a one-stop solution for Chinese blade fuses, ATO, ATC blade fuses, MAXI blade fuses, mini blade fuse holder bolt fuses, PCB blade fuse holders, panel mounted blade fuse holders, and fuse holders.

ENQUIRY!
Categories: ,

Description

Material Operating Temperature
Fuse body – PC
End cap – Zn Alloy		 -40℃～+125℃

Functional Characteristics

Testing Current Blow Time Min/Max (s)
20A 30A 40A 50A 60A 70A 80A
135% 1800 / 60 1800 / 60 1800 / 60 1800 / 60 1800 / 60 1800 / 60 1800 / 60
200% 20 / 4 30 / 6 40 / 8 50 / 10 60 / 15 60 / 4 60 / 4
300% 2 / 0.7 4 / 1 5 / 1.4 6 / 1.7 7 / 2 2 / 0.2 2 / 0.2
Type Current Rating Voltage Rating Colour mΩ I2T (A2sec) Approvals
ROHS
A20 20 32 Yellow 3.1 1100 ○
A30 30 32 Green 2 4070 ○
A40 40 32 Amber 1.4 8450 ○
A50 50 32 Red 1.1 11300 ○
A60 60 32 Blue 0.89 15300 ○
A70 70 32 Tan 0.69 6900 ○
A80 80 32 Purple 0.59 8800 ○
